Task Class Reference

Class for defining Tasks. More...

#include <task.hpp>

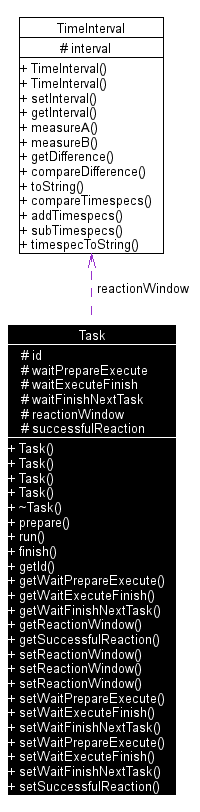

Collaboration diagram for Task:


Public Member Functions
	Task ()
	Constructor.
	Task (int, const timespec &, const timespec &, const timespec &, const TimeInterval &)
	Constructor.
	Task (int, long int, long int, long int, long int, long int, long int, long int, long int, long int, long int)
	Constructor.
	Task (const Task &)
	Copy constructor.
virtual	~Task ()
	Destructor.
virtual void	prepare ()
virtual void	run ()
virtual void	finish ()
int	getId () const
	Get the identifier of a task.
timespec	getWaitPrepareExecute () const
	Get the duration of time which will be waited between prepare and execute phase.
timespec	getWaitExecuteFinish () const
	Get the duration of time which will be waited between execute and finish phase.
timespec	getWaitFinishNextTask () const
	Get the duration of time which will be waited between finish phase and the start of the prepare phase of the next task.
const TimeInterval &	getReactionWindow () const
	Get the vector telling how a successful reaction should look like.
const vector< bool > &	getSuccessfulReaction () const
	Get the vector telling how a successful reaction should look like.
void	setReactionWindow (long int, long int, long int, long int)
	Set the duration of time in which a reaction may be valid.
void	setReactionWindow (const timespec &, const timespec &)
	Set the duration of time in which a reaction may be valid.
void	setReactionWindow (const TimeInterval &)
	Set the duration of time in which a reaction may be valid.
void	setWaitPrepareExecute (long int, long int)
	Set the duration of time which will be waited between prepare and execute phase.
void	setWaitExecuteFinish (long int, long int)
	Set the duration of time which will be waited between execute and finish phase.
void	setWaitFinishNextTask (long int, long int)
	Set the duration of time which will be waited until the next task enters preparation phase.
void	setWaitPrepareExecute (const timespec &)
	Set the duration of time which will be waited between prepare and execute phase.
void	setWaitExecuteFinish (const timespec &)
	Set the duration of time which will be waited between execute and finish phase.
void	setWaitFinishNextTask (const timespec &)
	Set the duration of time which will be waited until the next task enters preparation phase.
void	setSuccessfulReaction (const vector< bool > &)
	Set the vector of booleans telling how a successful reaction looks like.
Protected Attributes
int	id
	unique identifier
timespec	waitPrepareExecute
	wait time between preparation and execution phase
timespec	waitExecuteFinish
	wait time between execution and finish phase
timespec	waitFinishNextTask
	wait time between preparation and execution phase
TimeInterval	reactionWindow
	time in which a reaction is sucessful relative to end of execution phase
vector< bool >	successfulReaction
	vector of booleans which tell how a sucessful reaction should look like

Detailed Description

Class for defining Tasks.

Tasks are used to present stimulus to test persons. Each task is divided in three phases, a prepare, execute and finish phase. In the prepare phase it is common to display a fixation cross on screen and prepare all things which will be shown on the screen in the execute phase. In the finish phase the screen is cleaned for the next task. The main task for the programmer of test is overwriting the prepare(), run() and finish() methods wit their own code to make a custom task. Furthermore three wait times must be defined. This are the delays between the phases and the wait time between the end of this task and the start of the next one. Finally a reaction window has to be defined. This is the time relative to the end of the execute phase in which the test person is supposed to react. How she/he is supposed is defined by a vector of booleans representing the desired pattern of user actions.

Definition at line 41 of file task.hpp.

Constructor & Destructor Documentation

Task::Task ( )

Constructor.
All wait times are set to 2 seconds and the task id is 0. Furthermore the vector telling how a successfull reaction looks like is empty. Definition at line 24 of file task.cpp.
References setReactionWindow(), setWaitExecuteFinish(), setWaitFinishNextTask(), and setWaitPrepareExecute().

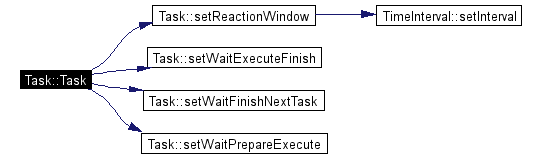

Here is the call graph for this function:

Task::Task ( int taskId,

const timespec & prepExeWait,

const timespec & exeFinWait,

const timespec & finNextWait,

const TimeInterval & window

)

Constructor.

Parameters:

taskId unique task identifier

prepExeWait delay between prepare and execute phase

exeFinWait delay between execute and finish phase

finNextWait delay between finish phase and next taskId

window reaction window

Definition at line 40 of file task.cpp.
References TimeInterval::getInterval(), reactionWindow, TimeInterval::setInterval(), setWaitExecuteFinish(), setWaitFinishNextTask(), and setWaitPrepareExecute().

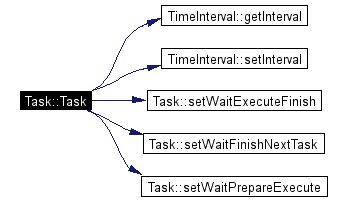

Here is the call graph for this function:

Task::Task ( int taskId,

long int prepExeWaitSec,

long int prepExeWaitNano,

long int exeFinWaitSec,

long int exeFinWaitNano,

long int finNextWaitSec,

long int finNextWaitNano,

long int windowStartSec,

long int windowStartNano,

long int windowEndSec,

long int windowEndNano

)

Constructor.

Parameters:

taskId unique task identifier

prepExeWaitSec delay between prepare and execute phase (seconds)

prepExeWaitNano delay between prepare and execute phase (nano seconds)

exeFinWaitSec delay between execute and finish phase (seconds)

exeFinWaitNano delay between execute and finish phase (nano seconds)

finNextWaitSec delay between finish phase and next taskId (seconds)

finNextWaitNano delay between finish phase and next taskId (nano seconds)

windowStartSec reaction window (seconds)

windowStartNano reaction window (nano seconds)

windowEndSec reaction window (seconds)

windowEndNano reaction window (nano seconds)

Definition at line 65 of file task.cpp.
References setReactionWindow(), setWaitExecuteFinish(), setWaitFinishNextTask(), and setWaitPrepareExecute().
Here is the call graph for this function:

Task::Task ( const Task & task )

Copy constructor.
Definition at line 81 of file task.cpp.
References id, reactionWindow, waitExecuteFinish, waitFinishNextTask, and waitPrepareExecute.

Task::~Task ( ) [virtual]

Destructor.
Definition at line 92 of file task.cpp.

Member Function Documentation

virtual void Task::finish ( ) [inline, virtual]

Definition at line 52 of file task.hpp.

int Task::getId ( ) const

Get the identifier of a task.

Returns:
id of the task
Definition at line 100 of file task.cpp.
Referenced by PtfCore::taskRegistrationHelper().

const TimeInterval & Task::getReactionWindow ( ) const

Get the vector telling how a successful reaction should look like.

Returns:
the vector telling how a successful reaction should look like
Definition at line 134 of file task.cpp.
References reactionWindow.

const vector< bool > & Task::getSuccessfulReaction ( ) const

Get the vector telling how a successful reaction should look like.

Returns:
the vector telling how a successful reaction should look like
Definition at line 142 of file task.cpp.
References successfulReaction.

timespec Task::getWaitExecuteFinish ( ) const

Get the duration of time which will be waited between execute and finish phase.

Returns:
duration of time which will be waited between execute and finish phase
Definition at line 116 of file task.cpp.
References waitExecuteFinish.

timespec Task::getWaitFinishNextTask ( ) const

Get the duration of time which will be waited between finish phase and the start of the prepare phase of the next task.

Returns:
duration of time which will be waited between finish phase and the start of the prepare phase of the next task
Definition at line 126 of file task.cpp.
References waitFinishNextTask.

timespec Task::getWaitPrepareExecute ( ) const

Get the duration of time which will be waited between prepare and execute phase.

Returns:
duration of time which will be waited between prepare and execute phase
Definition at line 108 of file task.cpp.
References waitPrepareExecute.

virtual void Task::prepare ( ) [inline, virtual]

Definition at line 50 of file task.hpp.

virtual void Task::run ( ) [inline, virtual]

Definition at line 51 of file task.hpp.

void Task::setReactionWindow ( const TimeInterval & time )

Set the duration of time in which a reaction may be valid.
This time is relative to the end of the execute phase.
Parameters:

time reaction window

Definition at line 176 of file task.cpp.
References reactionWindow.

void Task::setReactionWindow ( const timespec & a,

const timespec & b

)

Set the duration of time in which a reaction may be valid.
This time is relative to the end of the execute phase.
Parameters:

a window start

b window end

Definition at line 167 of file task.cpp.
References reactionWindow, and TimeInterval::setInterval().
Here is the call graph for this function:

void Task::setReactionWindow ( long int s1,

long int ns1,

long int s2,

long int ns2

)

Set the duration of time in which a reaction may be valid.
This time is relative to the end of the execute phase.
Parameters:

s1 window start seconds

ns1 window start nano-seconds

s2 window end seconds

ns2 window end nano-seconds

Definition at line 154 of file task.cpp.
References reactionWindow, and TimeInterval::setInterval().
Referenced by Task().
Here is the call graph for this function:

void Task::setSuccessfulReaction ( const vector< bool > & reaction )

Set the vector of booleans telling how a successful reaction looks like.

Parameters:

reaction vector of booleans

Definition at line 243 of file task.cpp.
References successfulReaction.

void Task::setWaitExecuteFinish ( const timespec & time )

Set the duration of time which will be waited between execute and finish phase.

Parameters:

time the variable which specifys the duration

Definition at line 224 of file task.cpp.
References waitExecuteFinish.

void Task::setWaitExecuteFinish ( long int s,

long int ns

)

Set the duration of time which will be waited between execute and finish phase.

Parameters:

s the variable which specifys the duration in seconds

ns the variable which specifys the duration in nano-seconds

Definition at line 195 of file task.cpp.
References waitExecuteFinish.
Referenced by Task().

void Task::setWaitFinishNextTask ( const timespec & time )

Set the duration of time which will be waited until the next task enters preparation phase.

Parameters:

time the variable which specifys the duration

Definition at line 234 of file task.cpp.
References waitFinishNextTask.

void Task::setWaitFinishNextTask ( long int s,

long int ns

)

Set the duration of time which will be waited until the next task enters preparation phase.

Parameters:

s the variable which specifys the duration in seconds

ns the variable which specifys the duration in nano-seconds

Definition at line 206 of file task.cpp.
References waitFinishNextTask.
Referenced by Task().

void Task::setWaitPrepareExecute ( const timespec & time )

Set the duration of time which will be waited between prepare and execute phase.

Parameters:

time the variable which specifys the duration

Definition at line 215 of file task.cpp.
References waitPrepareExecute.

void Task::setWaitPrepareExecute ( long int s,

long int ns

)

Set the duration of time which will be waited between prepare and execute phase.

Parameters:

s the variable which specifys the duration in seconds

ns the variable which specifys the duration in nano-seconds

Definition at line 185 of file task.cpp.
References waitPrepareExecute.
Referenced by Task().

Member Data Documentation

int Task::id [protected]

unique identifier
Definition at line 70 of file task.hpp.
Referenced by Task().

TimeInterval Task::reactionWindow [protected]

time in which a reaction is sucessful relative to end of execution phase
Definition at line 74 of file task.hpp.
Referenced by getReactionWindow(), setReactionWindow(), and Task().

vector<bool> Task::successfulReaction [protected]

vector of booleans which tell how a sucessful reaction should look like
Definition at line 75 of file task.hpp.
Referenced by getSuccessfulReaction(), and setSuccessfulReaction().

timespec Task::waitExecuteFinish [protected]

wait time between execution and finish phase
Definition at line 72 of file task.hpp.
Referenced by getWaitExecuteFinish(), setWaitExecuteFinish(), and Task().

timespec Task::waitFinishNextTask [protected]

wait time between preparation and execution phase
Definition at line 73 of file task.hpp.
Referenced by getWaitFinishNextTask(), setWaitFinishNextTask(), and Task().

timespec Task::waitPrepareExecute [protected]

wait time between preparation and execution phase
Definition at line 71 of file task.hpp.
Referenced by getWaitPrepareExecute(), setWaitPrepareExecute(), and Task().

The documentation for this class was generated from the following files:

Generated on Fri Dec 17 14:54:32 2004 for Psychological Test Framework by

1.3.8

Task Class Reference

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
